Taking the Trellis Vertical

James Proctor

Jan 4, 2025 — 1 min read

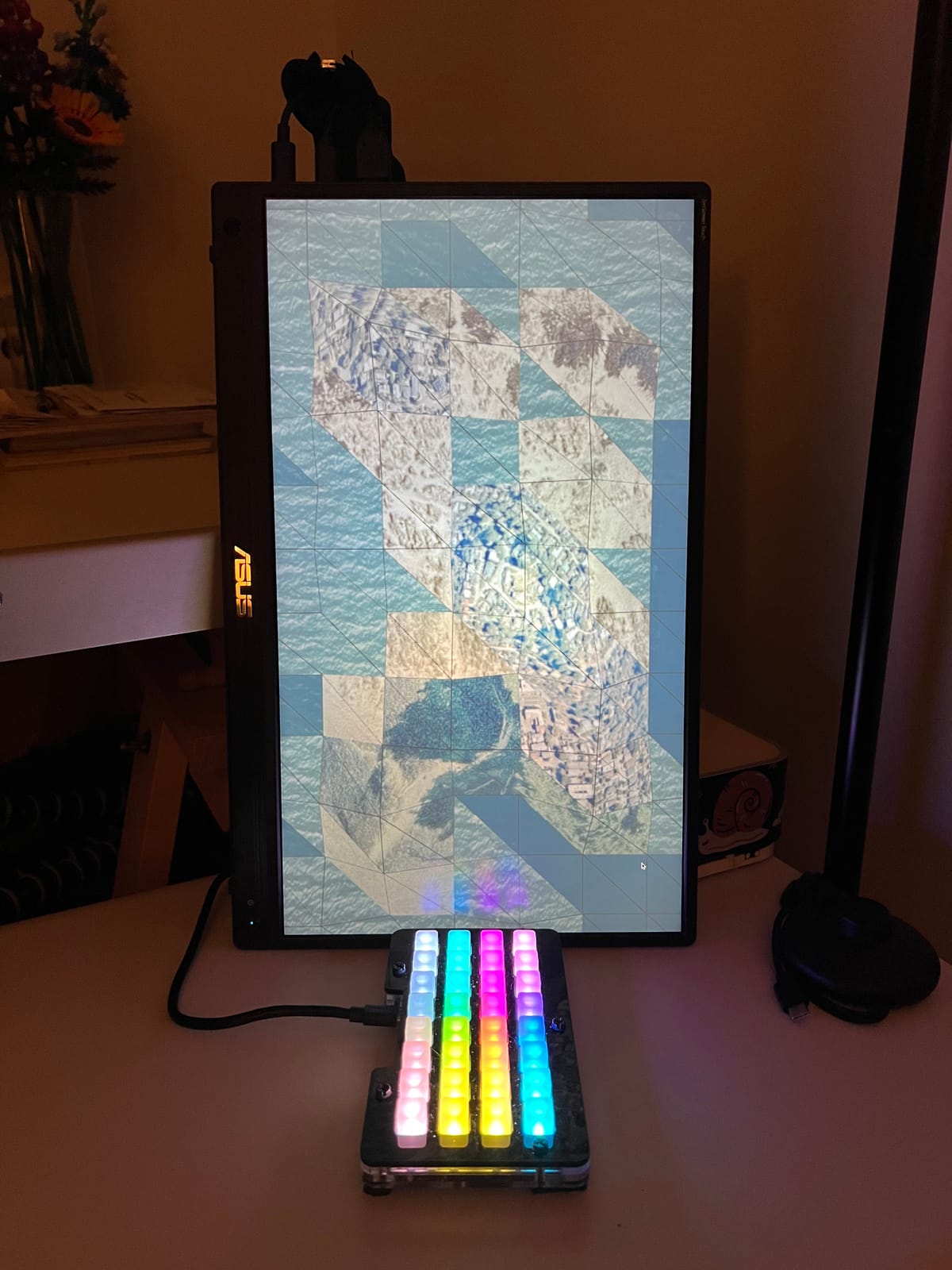

This little controller was assembled originally to be an input for Retrofit, an interactive piece I put together in an arcade cab back in 2019. Since I have my pi hooked up to this vertical display I decided to tweak the layout to create a TATE mode. It can be fun to revisit old projects and I was curious to see if the pi could manage a 3d app like this.

Turns out it can, with some compromises to resolution.

0:00

/0:29
